Isolation
What is a signal isolator?
A signal isolator or signal converter is a signal conditioning device used to interface process signals with other devices. Signal isolators ensure a stable and accurate signal output by offering superior resistance to electro-magnetic interference. They are also capable of converting and amplifying the process signals for improved performance and compatibility. PR electronics offers a range of isolators with superior performance and low power consumption.

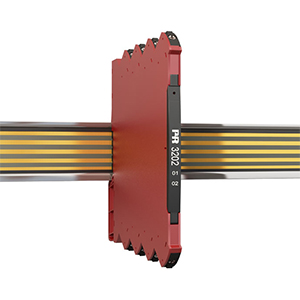

Pulse isolator / switch amplifier PR 3202
- Input: NAMUR, NPN open collector, contact
- Output: 2 x relay or NPN transistor output
- 2.5 kVAC 4-port galvanic isolation
- Line Fault Detection (LFD) / cable break detection
- Power supply 16.8 VDC…31.2 VDC

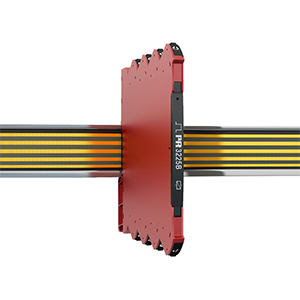

Universal frequency converter PR 3225
- Input: NAMUR, NPN, PNP, Tacho, TTL, S0 & switches
- Output: Universal mA / V or relay
- 2.5 KVAC isolation
- DIP-switch or display programmable
- Power supply 16.8 VDC…31.2 VDC
Isolated repeater PR 3103
- Isolation and 1:1 conversion of standard current signals
- Response time < 7 ms
- Low cost
- Simple - no setup needed
- Slimline housing of 6.1 mm
Isolated converter PR 3104
- Isolation and conversion of standard DC signals
- Power supply and signal isolator for 2-wire transmitter
- Loop supply >17 V
- DIP switch configuration
- Slimline housing of 6.1 mm
Isolated converter PR 3105
- Isolation and conversion of standard DC signals
- Response time < 7 ms
- DIP switch configuration
- Low cost
- Slimline housing of 6.1 mm

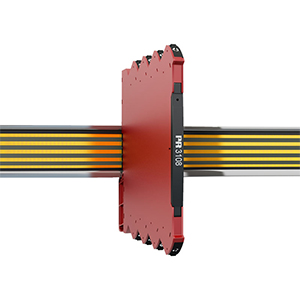

Isolated repeater / splitter PR 3108
- Isolation and conversion of standard DC signals
- Response time <7 ms
- Splitter function: 1 in - 2 out
- Simple - no setup needed
- Slimline 6.1 mm housing
Isolated converter / splitter PR 3109
- Isolation and conversion of standard DC signals
- Power supply and signal isolator for 2-wire transmitter
- Splitter function: 1 in - 2 out
- DIP switch configuration
- Slimline housing of 6.1 mm
Isolated universal converter PR 3114
- Input for RTD, TC, Ohm, potentiometer, mA and V
- 2-wire supply >15 V
- I.S. approvals: FM Div. 2, ATEX Zone 2, IECEx Zone 2, UKEX Zone 2
- Output for current and voltage
- Slimline housing of 6.1 mm
Bipolar isolated converter PR 3117
- Conversion of voltage and current bipolar process signals to unipolar signals
- Output: Current and voltage
- Excellent accuracy, better than 0.05 % of span
- Fast response time < 7 ms and high output load stability
- Multiple signal ranges are selectable via DIP-switches

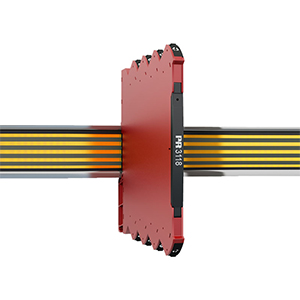

Bipolar isolated converter / splitter PR 3118
- Conversion of voltage and current bipolar process signals to uni-/bipolar signals
- Output: Current and voltage
- Excellent accuracy, better than 0.05% of span
- Splitter function: 1 in - 2 out
- Multiple signal ranges are selectable via DIP-switches
Loop powered isolator PR 3185
- 1 or 2 channel input loop-powered isolator
- Isolation and 1:1 conversion of standard current signals
- Excellent accuracy and high load stability
- Low input voltage drop and fast response time
- Slimline 6.1 mm housing

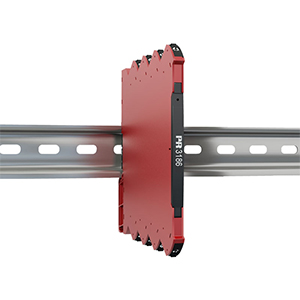

2-wire transmitter isolator / current isolator PR 3186
- 1 or 2 channel 2-wire transmitter isolator / current isolator
- Isolation and 1:1 conversion of standard current signals
- Excellent accuracy, better than 0.05% of span
- Low voltage drop and fast response time < 5 ms
- Slimline 6.1 mm housing

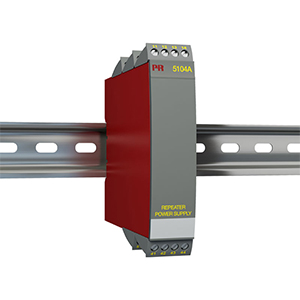

Repeater / power supply PR 5104A
- 1- or 2-channel version
- 3- / 5-port 3.75 kVAC galvanic isolation
- Loop supply > 17.1 V
- 20 programmable measurement ranges
- Universal supply by AC or DC

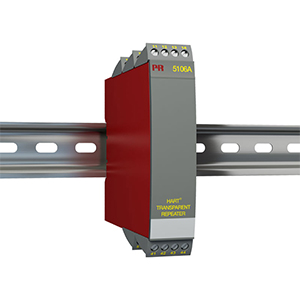

HART transparent repeater PR 5106A
- 3- / 5-port 3.75 kVAC galvanic isolation
- Low response time
- 2-wire supply > 17 V
- 1- or 2-channel version
- Universal supply by AC or DC

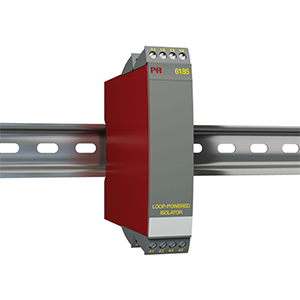

Loop-powered isolator PR 6185
- 1-, 2- and 4-channel galvanic isolation
- Slimline channel width of less than 6 mm
- No separate supply necessary
- Low response time
- High noise suppression

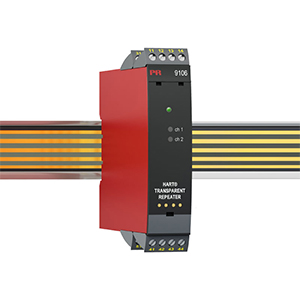

HART transparent repeater PR 9106A
- 24 VDC supply via power rail or connectors
- Active and passive mA input
- Active or passive output via the same two terminals
- Splitter function - 1 in and 2 out
- SIL2 / SIL3 Full Assessment and certified acc. to IEC 61508

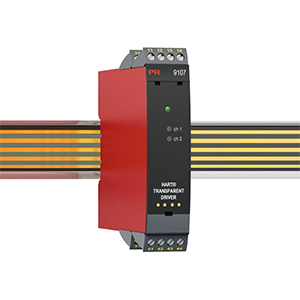

HART transparent driver PR 9107A
- 24 VDC supply via power rail or connectors
- Fast response time
- High active output load 725 Ohm / 20 mA
- Output line fault detection via status relay
- SIL2 certified via Full Assessment according to IEC 61508

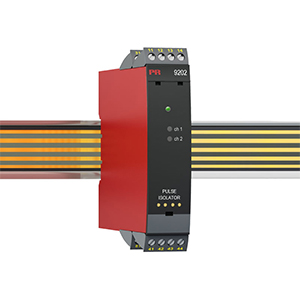

Pulse isolator PR 9202A
- Interface for NAMUR sensors and switches
- Extended self-diagnostics and detection of cable fault
- 1 or 2 channels
- Can be supplied separately or installed on power rail, PR type 9400
- SIL 2-certified via Full Assessment

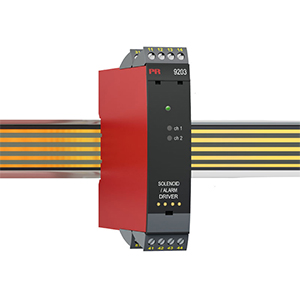

Solenoid / alarm driver PR 9203A
- Universal driver for solenoids, acoustic alarms and LEDs
- Extended self-diagnostics
- 1 or 2 channels
- Can be supplied separately or installed on power rail, PR 9400
- SIL 2-certified via Full Assessment
